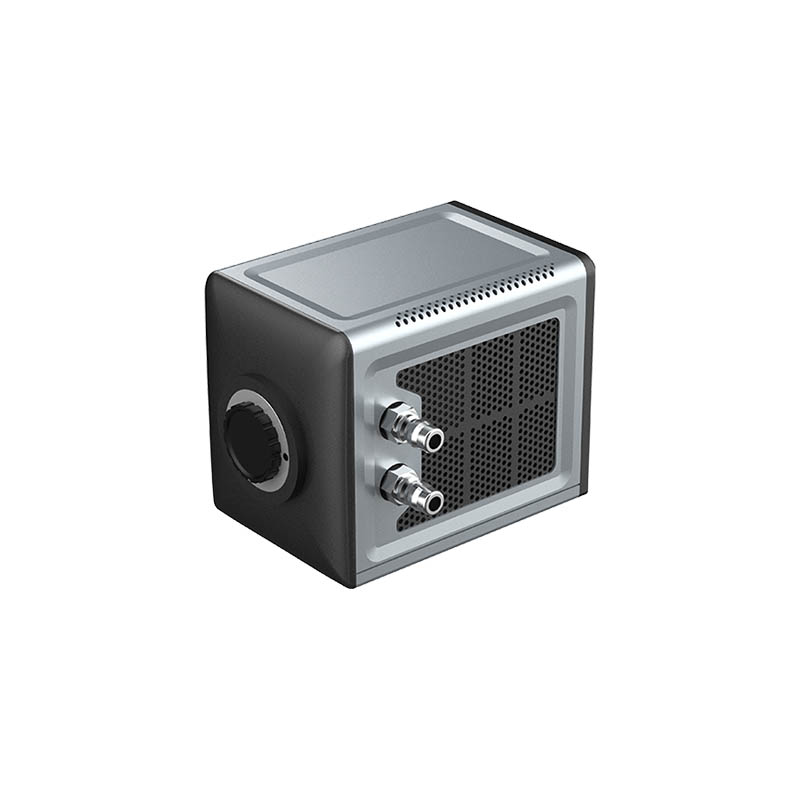

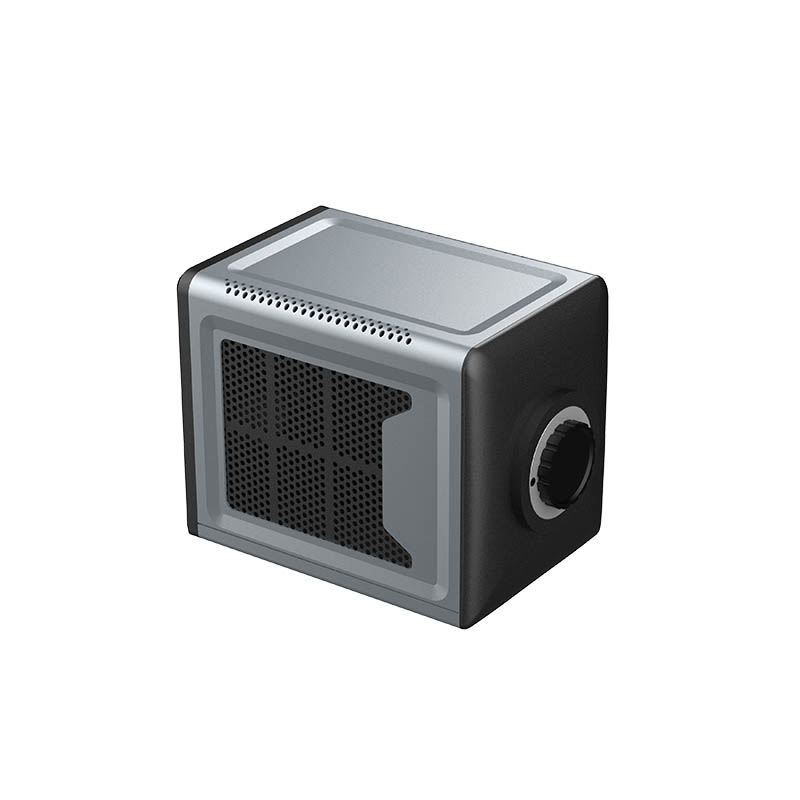

D-BLUE1 Scientific Infrared Camera
- Model:
- D-BLUE1
Features
Active Pixels
640×512
Pixel Size
15μm
Max Frame Rate
50Hz
Power Dissipation
≤36W
Weight
<2kg
Dimensions
148mm×98mm×116.5mm
Description
The D-BLUE1 scientific infrared camera adopts an InGaAs detector with a built-in 3-stage TEC, capable of cooling down to
-50°C. It supports Ethernet or Cameralink interfaces and provides an SDK for secondary development.
This camera is widely applicable in semiconductor failure analysis, biological in vivo imaging, astronomical observation, and other fields.
Specifications
SPECIFICATIONS
D-BLUE1
Sensor Type
InGaAs Photodiode
Active Pixels
640×512
Pixel Size
15μm
Optical Fill Factor
100%
Spectral Response Range
0.9~1.7μm @RT
Pixel Operability
≥99.8%
Max Frame Rate
50Hz
Integration Time
≤1us-1min
Mean Pixel Dark Current
≤700e/s/pixel@-50℃(air cooling)
Dark Noise (RMS)
≤15e(hg)
Digital Output
14 bit
Output Interface
CameraLink or Ethernet
Power Supply
DC 12V
Power Dissipation
≤36W
Lens Mount
C-mount
Weight
<2kg
Dimensions
148mm×98mm×116.5mm
Operating Temperature
-0℃~+30℃
