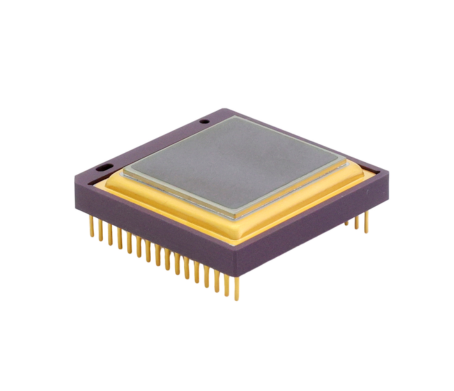

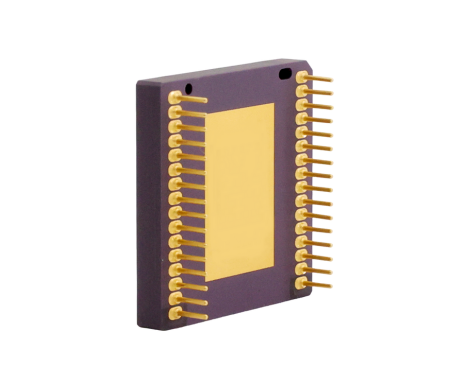

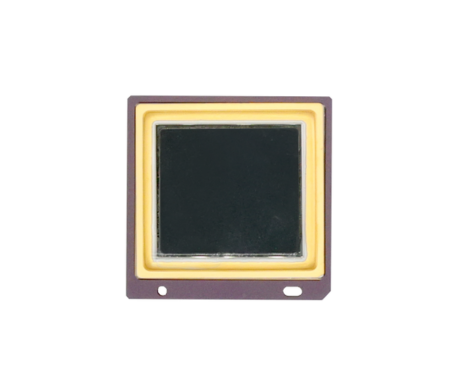

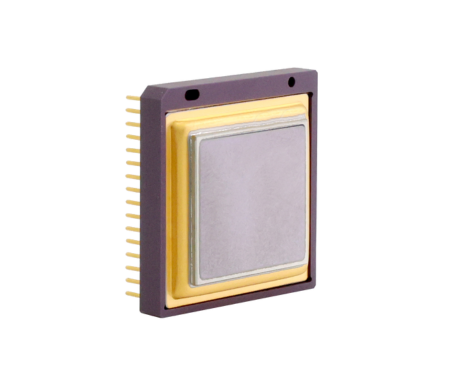

RTD6122C High-Performance Ceramic Packaged LWIR Sensor
- Model:
- RTD6122C
Features
Resolution
640×512
Pixel Pitch
12μm
Detector Framerate
≤60Hz
Power Consumption
<170mW
Weight
≤6g
Size
22×22×4.58mm³ (without pin)
Description
RTD6122C is a ceramic-packaged LWIR sensor (640×512, 12μm) based on vanadium oxide (VOx) microbolometer with an 8-14 µm wavelength range, high performance, low power consumption and high sensitivity.
RTD6122C applies to multiple scenarios, e.g. outdoor night vision, fire prevention, etc.
Specifications
Module
RTD6122C
Sensor Technology
VOx microbolometer
Spectral Range
8-14μm
Pixel Pitch
12μm
Array Format
640×512
Operability
≥99.5%
NETD
<40mK (@f/1.0,50Hz,300K)
Thermal Time Constant
<12ms
Frame Rate
≤60Hz
Power Consumption
<170mW(@50Hz,25ºC)
Output Format
14bits
Wide Dynamic Range Mode
Support -40~600ºC temperature measurement (@f/1.0)
Read Mode
Rolling shutter mode
Mirroring
X-mirroring, Y- mirroring
Non-uniformity Correction
non-uniformity correction
Operating Temperature Range
-40°C~+85°C
Package Type
32-pin ceramic
Size
22×22×4.58mm³ (without pin)
Weigh
≤6g
Industry Solution
Security Monitoring
Fire Monitoring and Alarm
Outdoor Leisure
Industrial Applications
