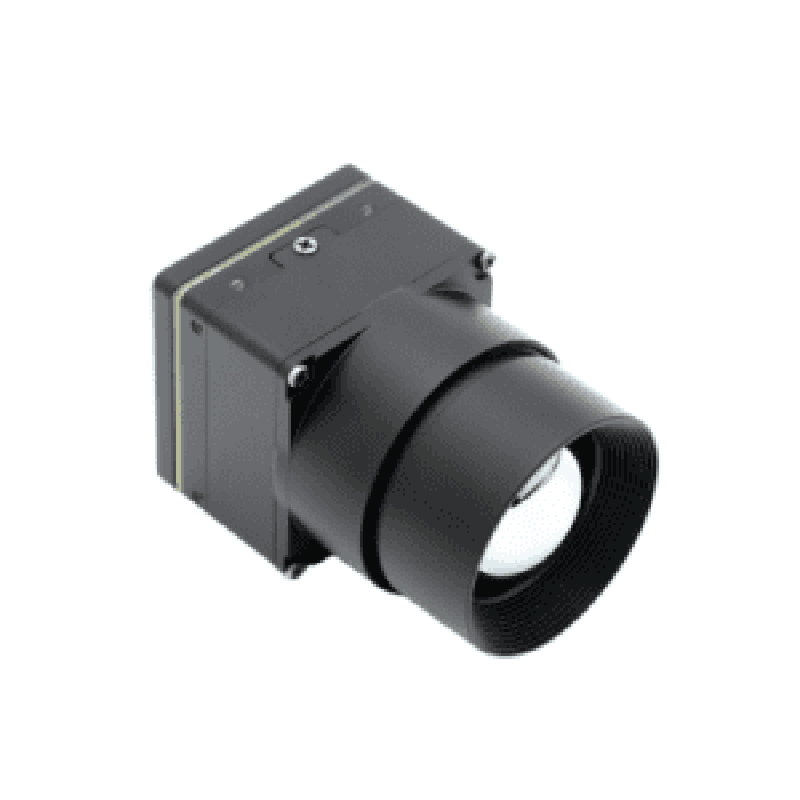

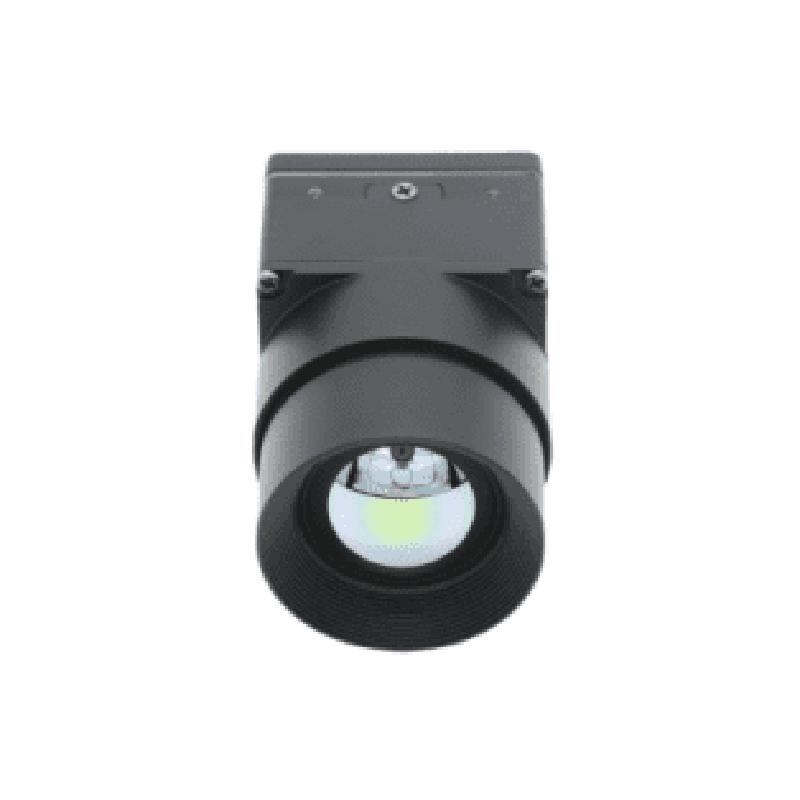

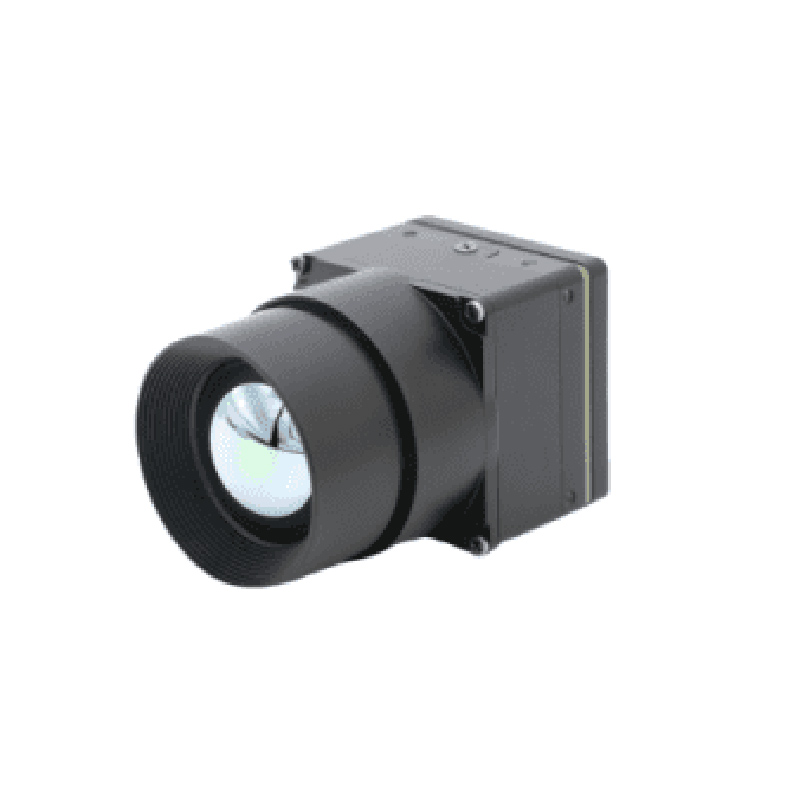

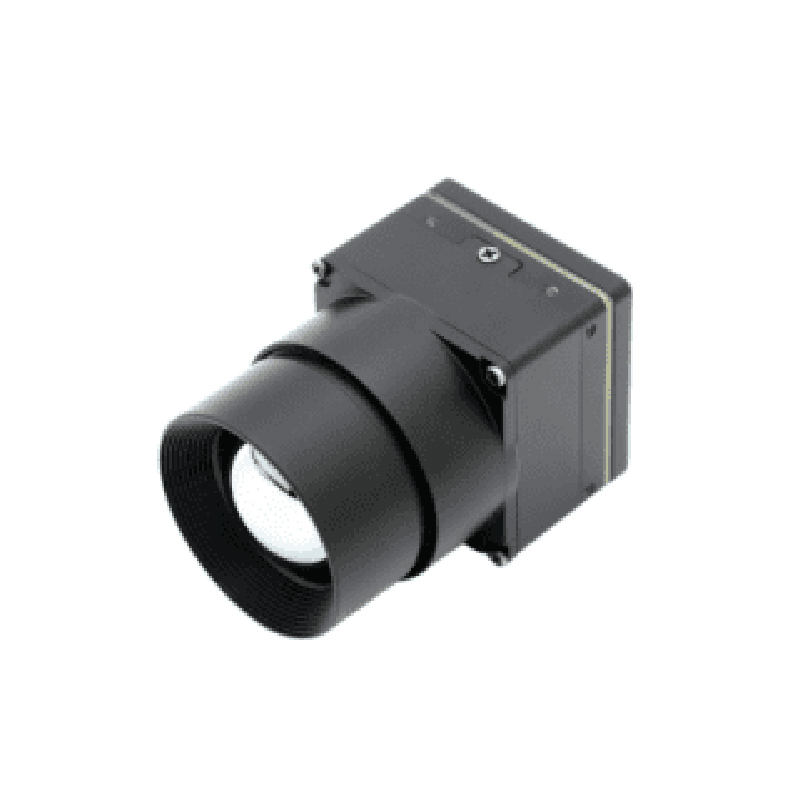

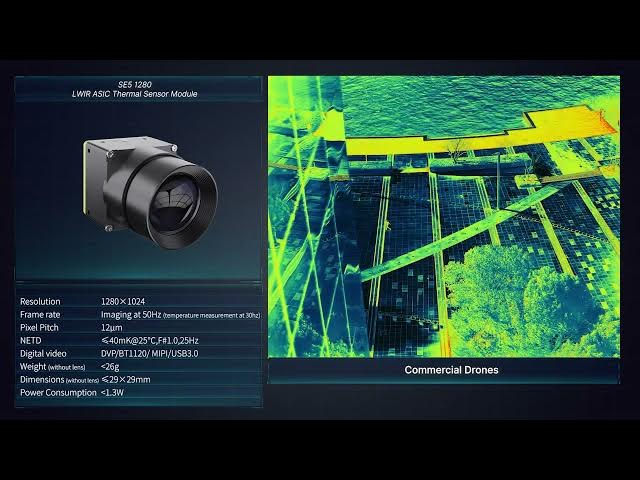

SE5 1280 LWIR ASIC Thermal Sensor Module
- Model:
- SE5 Series
Features
Resolution
1280×1024
Pixel Pitch
12μm
Detector Framerate
Imaging at 50Hz (temperature measurement at 30hz)
Typical Power
＜1.3W
Weight (without lens)
<26g
Dimensions (without lens)
≤29×29mm
Description
SE5 1280 is a high-resolution(1280×1024) uncooled thermal camera with a self-developed infrared LY300, stable supply and high reliability. It features a compact size, low power consumption and long standby time.

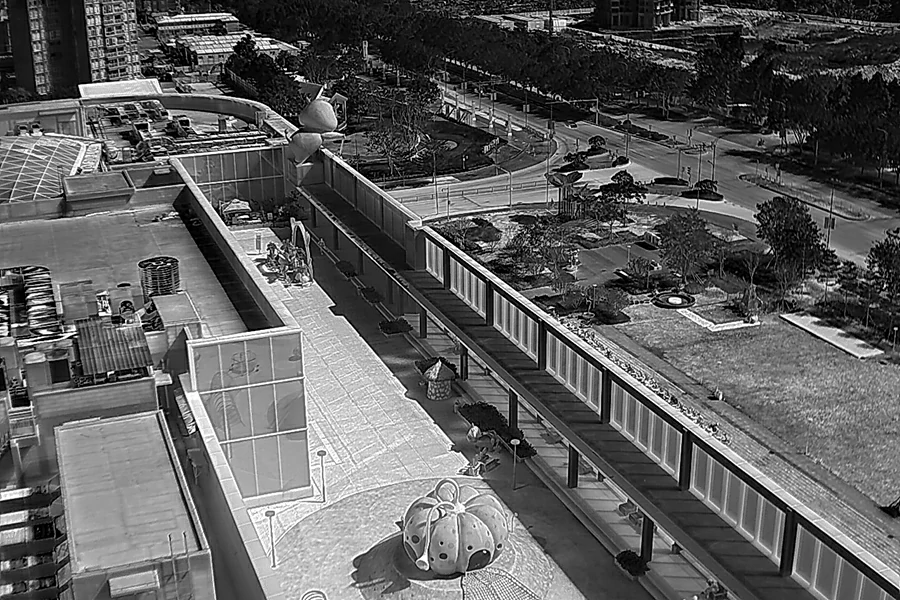

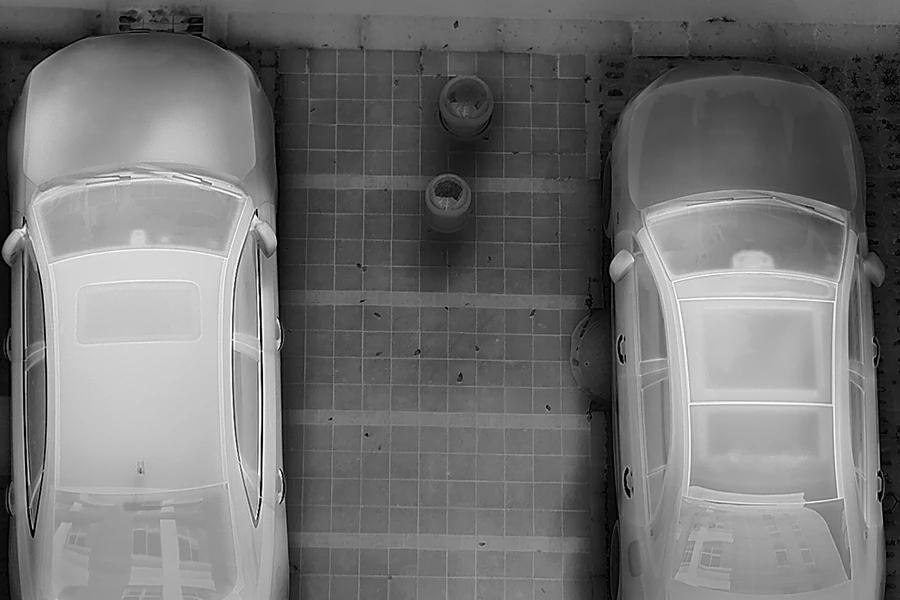

SE5 1280 offers multiple image modes including edge outlining mode, allowing users to choose the best one for different industry applications. SE5 1280 applies to multiple scenarios, e.g. security, handheld devices, night vision,etc.
Specifications
Technical specifications
SE5 1280
Detector type
Uncooled VOx infrared detector
Resolution
1280×1024
Frame rate
Imaging at 50Hz (temperature measurement at 30hz)
Pixel pitch
12 μm
Spectral range
8~14 μm
NETD
≤40mK@25℃,F#1.0,25Hz
Thermal time constant
＜12ms
Image Adjustment
Non-uniformity correction
Shutter correction / Shutter-Less algorithm correction
Brightness / Contrast
0-100 optional
Polarity / Palette
White -hot/black- hot / Various palettes supported
Mirroring
Vertical/Horizontal/Diagonal
Electrical parameters
Digital video
DVP/BT1120/ MIPI/USB3.0
Communication interface
UART/I2C
Input supply voltage
5V
Typical power
＜1.3W
Physical Characteristics
Weight (without lens)
<26g
Dimensions (without lens)
≤29×29mm
Temperature measurement
Temperature measurement range
High quality: -20℃-150℃; wide range: 50℃-600℃
Operating temperature
-40℃~+80℃
Storage temperature
-50℃~+85℃
Humidity
5%-95%, non-condensing
Vibration
6.06 g, random vibration, all axes
Impact
80g @ 4ms, rear peak sawtooth wave, 3 axes and 6 directions
