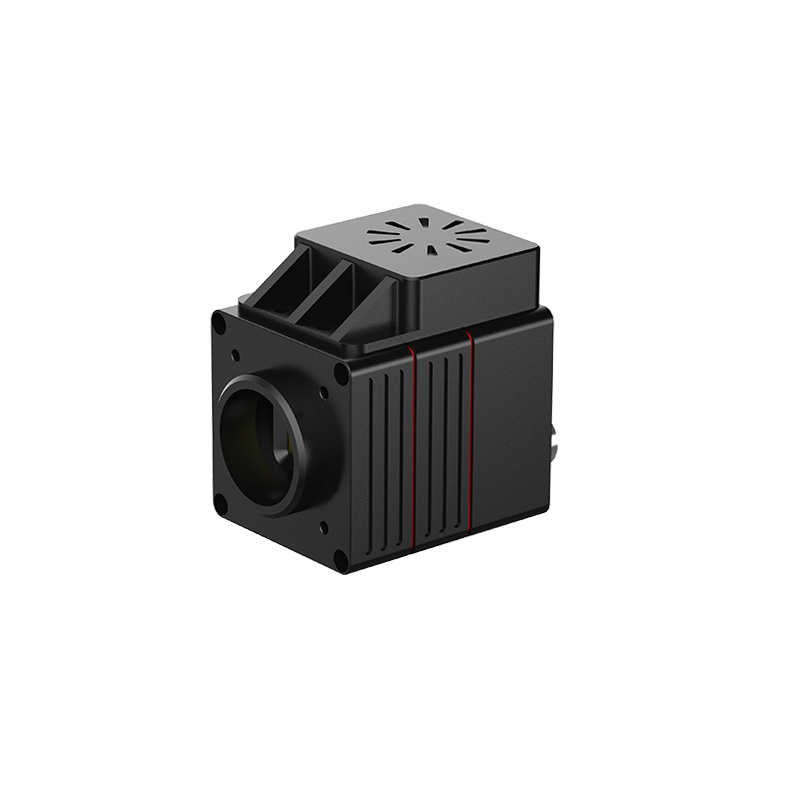

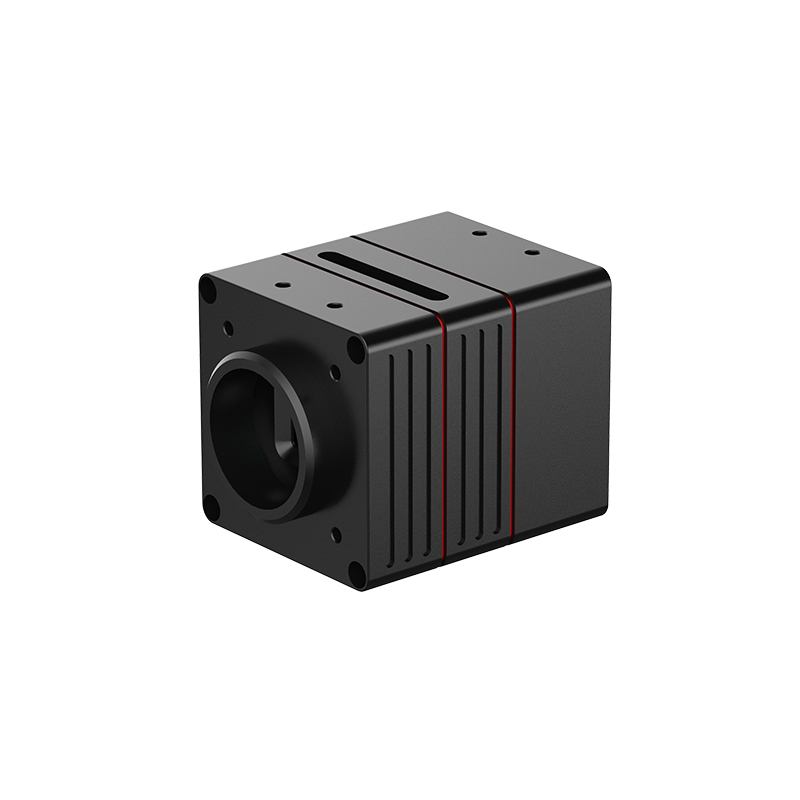

NS-615A-GE Area Scan SWIR Camera
- Model:
- NS-615A-GE
Features
Active pixel
640×512
Pixel pitch
15 μm
Maximum frame rate (full array)
180Hz
Typical power consumption
<2.5W (TEC off)
Core weight
150±5 g
Core dimensions
46×46×61mm³
Description
The NS-615A-GE area array SWIR camera adopts an InGaAs detector with built-in image correction and image processing algorithms,as well as GigE image interfaces.
It features low noise, digital output, and low power consumption, making it widely applicable in semiconductors, sorting, etc.
Specifications
Technical parameters
NS-615A-GE
Sensor
InGaAs
Spectral response range
0.9 μm~1.7 μm
Quantum efficiency
≥70%(1.0 μm~1.6 μm)
Optical fill factor
100%
Pixel pitch
15 μm
Active pixel
640×512
Pixel operability
≥ 99.8%
Maximum frame rate (full array)
180Hz
Output data depth
14/12/10/8bit
Exposure type
Snapshot global shutter
Minimum integration time
100us
Dynamic range (typical value)
67dB (HG)
Optional gain
3
Average pixel dark current
≤100ke/s@20℃
Power supply voltage
Typical 12V
Typical power consumption
<2.5W (TEC off)
Interface
GigE
Lens mount
C-Mount
Core weight
150±5 g
Core dimensions
46×46×61mm
Operating temperature
-40℃~+60℃
Storage temperature
-40℃~+85℃
Temperature control
TEC1
