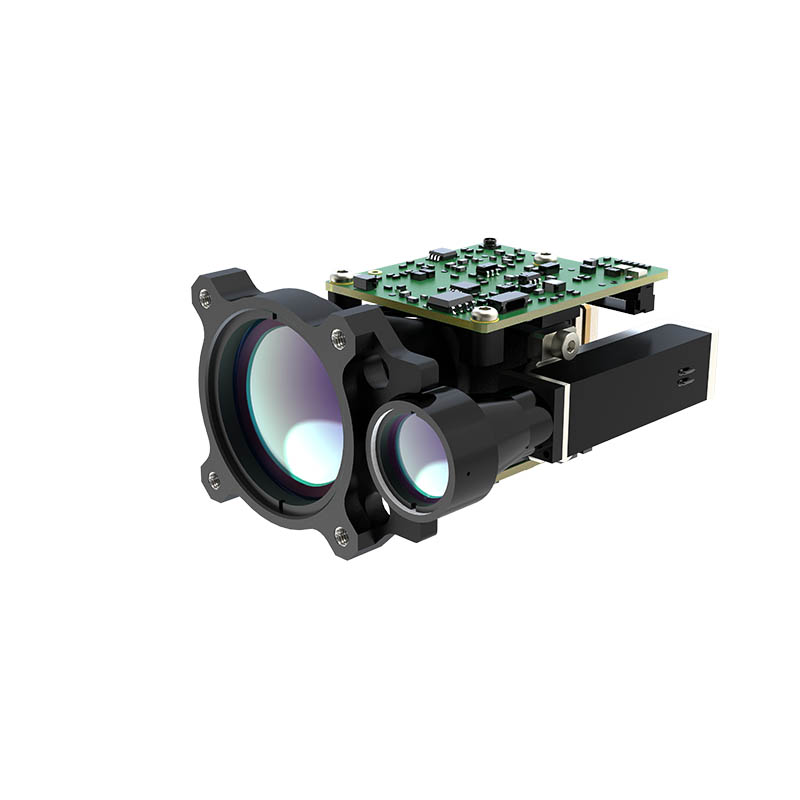

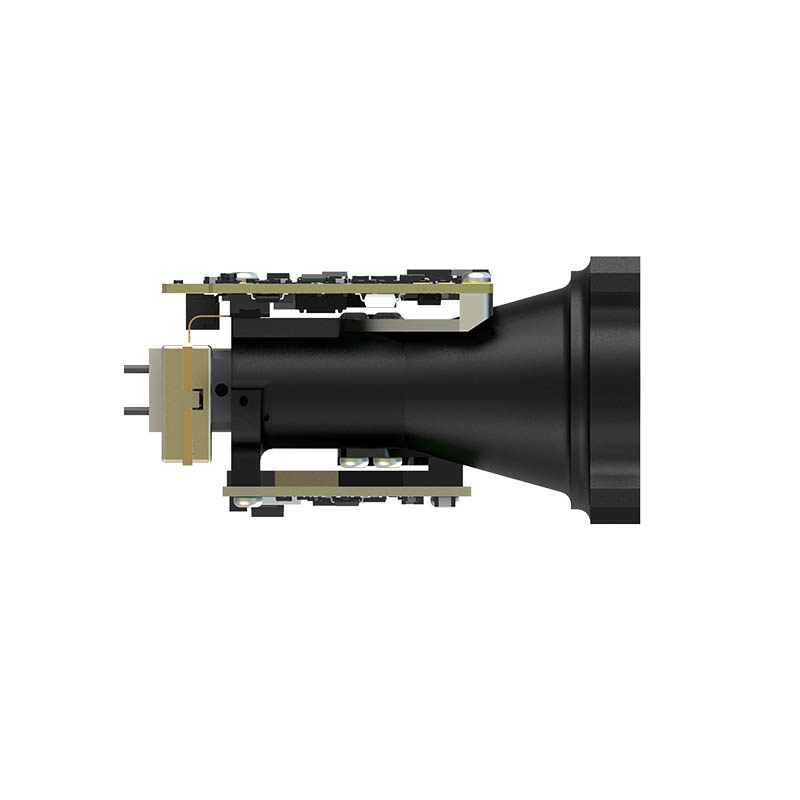

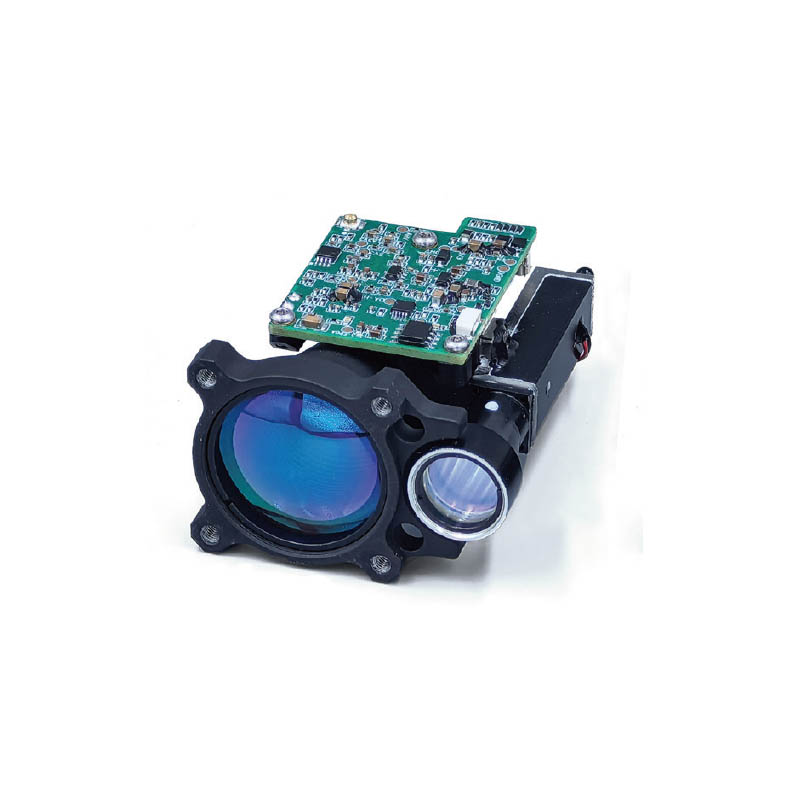

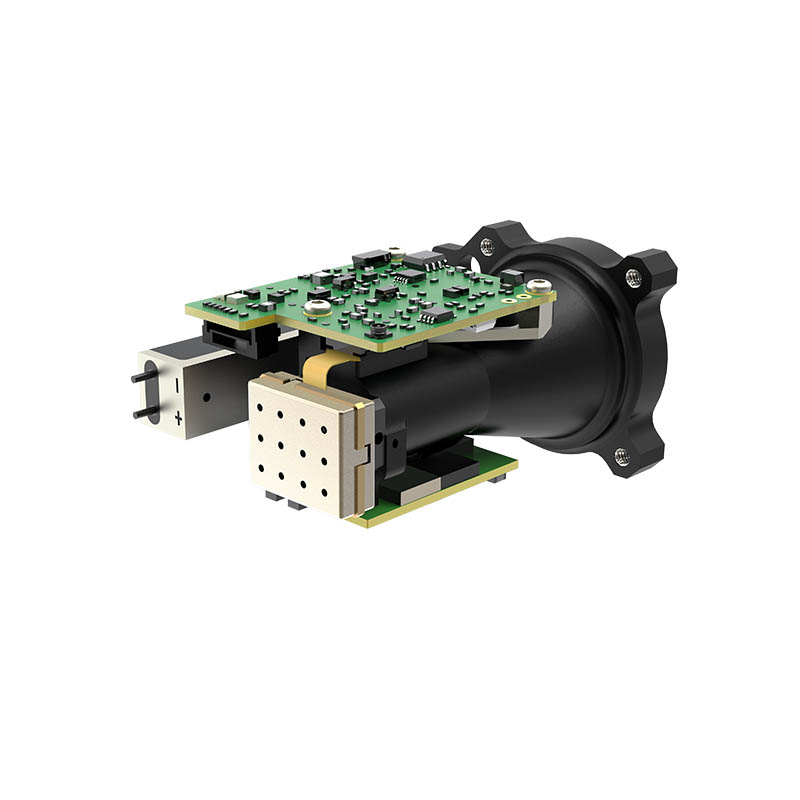

LM8000 8km Long Range Laser Rangefinder Module
- Model:
- LM8000
Features
Wavelength
1535±5 nm
Eye safety
Class 1（IEC 60825-1)
Range（Building）
20~10000m
Frequency
1~10Hz（adjustable）
Operating power
≤2.5W@10Hz
Weight
48×31×21mm
Dimention
32±1g
Description
The LM8000 laser rangefinding module combines exceptional performance with rugged reliability. At its heart is our proprietary, Class 1 eye-safe 1535nm Erbium-glass laser, making it safe for use in diverse environments.
Confidently measure distances up to 10,100 meters and reliably detect vehicles at 8,000 meters. With ±1m accuracy, multi-target capability, and high detection probability, you get the critical data you need.
Ready for the most demanding integrations, its compact, lightweight form factor, wide operating voltage, and low power consumption make it the perfect fit for UAV gimbals, handheld rangefinders, and observation systems.
Specifications
Product model
LM3000
LM6000
LM8000
Wavelength
1535±5 nm
Eye safety
Class 1(IEC 60825-1)
Divergence
~0.6mrad
~0.3mrad
Range(Building)
15~4200m
20~7100m
20~10000m
Frequency
1~10Hz(adjustable)
Accurancy
±1m
Detection probability
≥98%
False alarm rate
≤1%
Multi-target detection
Up to 3
Interface
UART (TTL_3.3V)
Operating power
≤2.5W@10Hz
≤3.5W@10Hz
Weight
48×31×21mm
65×48×32mm
Dimention
32±1g
58±1g
Mechanical shock
1200g，1ms
75g 6ms
Vibration
5~50~5Hz，1 octave per minute，2.5g
0.01~0.04g2/Hz,20~2000Hz
Operation temperature
-20 ~ +70℃
Storage temperature
-20 ~ +75℃
