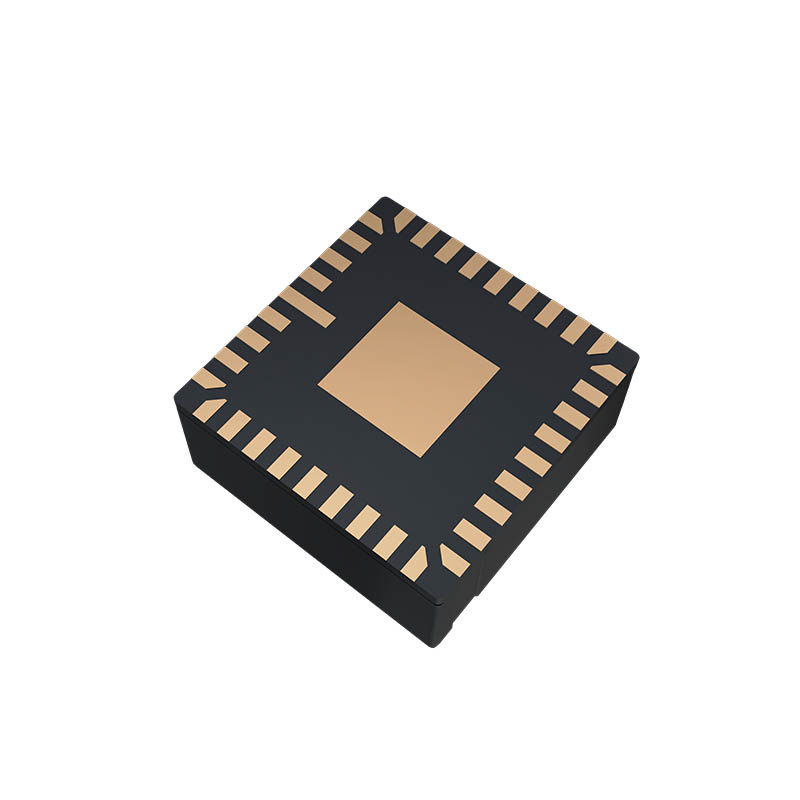

OHLE3123 Uncooled Infrared Focal Plane Detector
- Model:
- OHLE3123
Features
Resolution
384×288
Pixel Pitch
12μm
Frame Rate
≤60Hz
Power Consumption (25Hz, 300K)
<65mW
Dimensions
10.4mm×10.4mm×4.3mm
Description
The OHLE3123 is a super-wafer-level-packaged (SWLP) long-wave infrared sensor (384×288, 12μm) based on vanadium oxide (VOx) microbolometer. Its innovative window design overcomes integration environment limitations. Compatible with SMT mounting technology, it enables rapid mass production.
It features with an ultra-compact size, an ultra-lightweight design, high-qualiy imaging and ease of integration. OHLE3123 applies to multiple scenarios, e.g. outdoor night vision, industrial temperature measurement, security monitoring etc.
Specifications
Technical Specifications
OHLE3123
Sensor Technology
Vanadium oxide microbolometer
Resolution
384×288
Spectral Range
8~14μm
Pixel Pitch
12μm
NETD (f/1.0, 25Hz, 300K)
<40mK
Frame Rate
≤60Hz
Thermal Time Constant
<15ms
Digital Output Bits
14bits
Read Mode
Rolling shutter mode
Mirroring
X- mirroring, Y-mirroring
Non-uniformity Correction
non-uniformity correction
Power Consumption (25Hz, 300K)
<65mW
Dimensions
10.4×10.4×4.3mm3
Package Type
<0.6g
Package Weight
36-Pin SWLP
Output Polarity
-40~600℃
Temperature Measurement Range
Black hot
Operability Rate
≥99.5%
Input Interface
I2C interface (MODE0)
2bits parallel input interface (MODE1)
2bits parallel input interface (MODE1)
Operating Temperature Range
-40°C~+85°C
