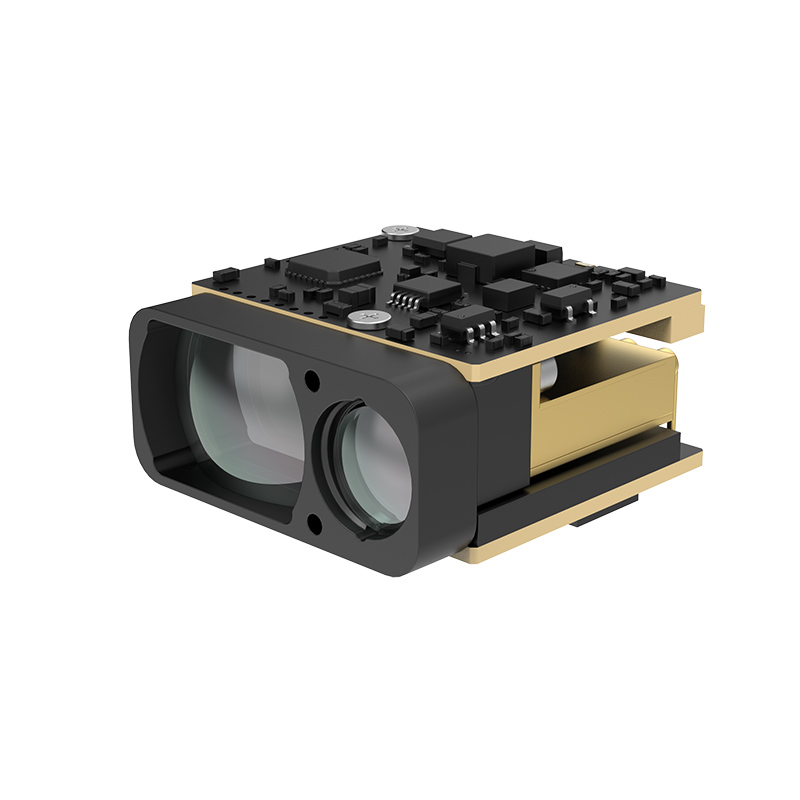

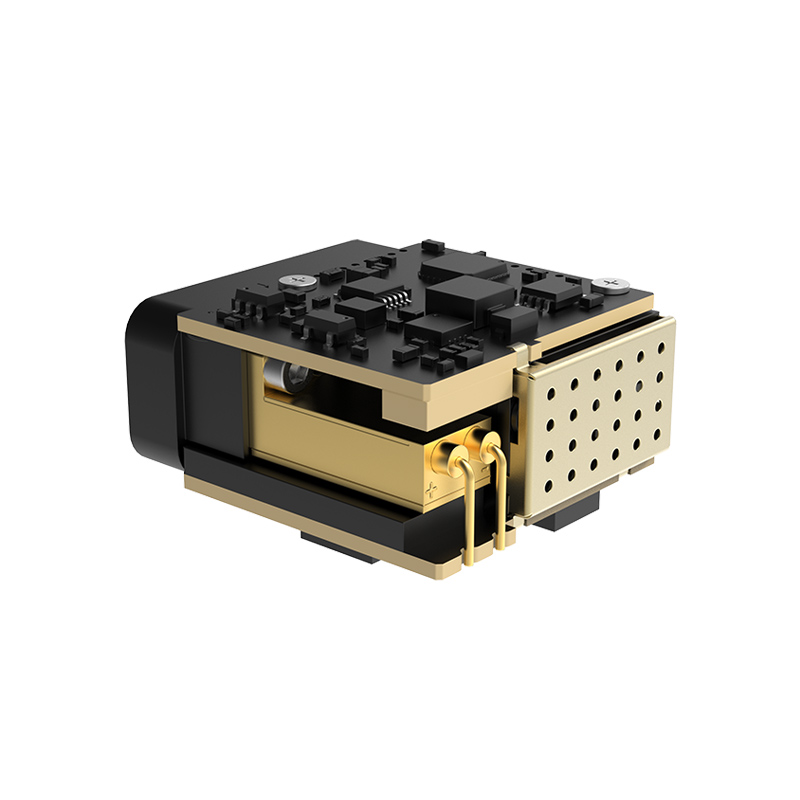

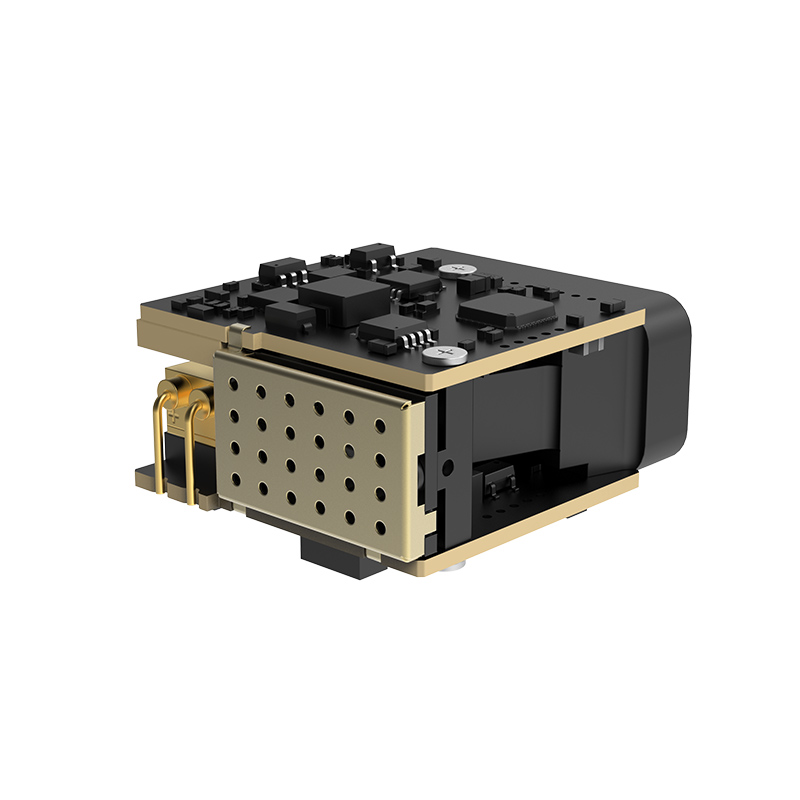

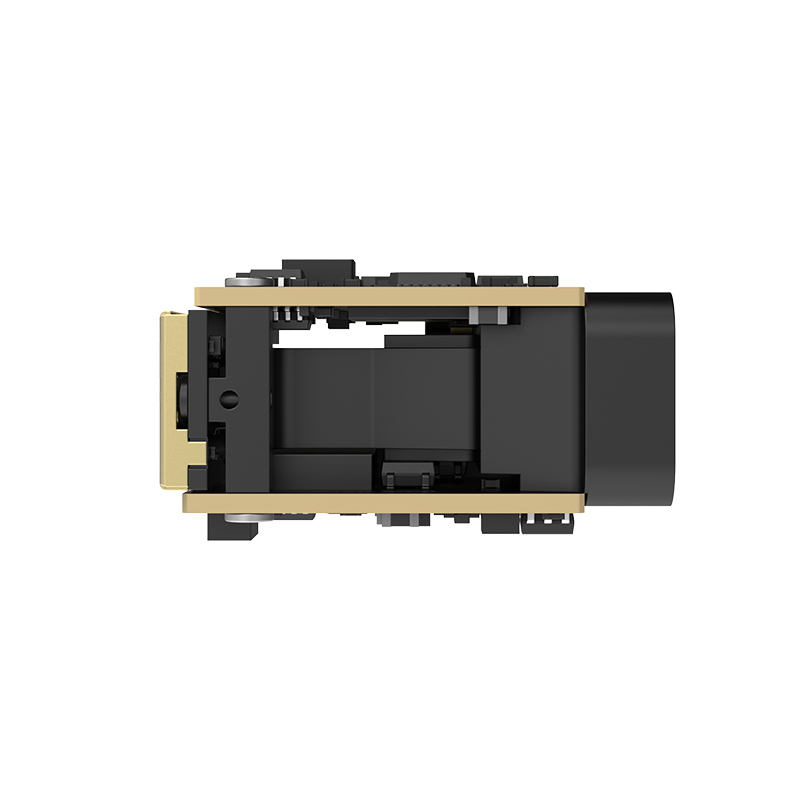

LM3000 mini 3km Long Range Laser Rangefinder Module
- Model:
- LM3000 Mini
Features
Wavelength
1535±5 nm
Eye safety
Class 1（IEC 60825-1）
Range（Building）
10~4000m
Frequency
1~10Hz（adjustable）
Operating power
≤1.5W@10Hz
Weight
14±1g
Dimention
27×25×15.5mm（L×W×H）
Description
The all-new LM Mini Series is a Class 1 eye-safe micro laser ranging module, developed based on our proprietary 1535nm Erbium-glass laser. It represents a significant miniaturization leap, with a 66% reduction in volume and a 56% reduction in weight compared to the previous generation of 1535nm modules with equivalent range.
The module supports a measurement range of 10 to 4000 meters, achieving up to 3000 meters against vehicle targets. It combines this extended range with remarkably low power consumption, stable performance, and high resistance to strong shock.
Offering single and continuous ranging, first/last target selection, and multi-target capabilities, the LM Mini is ideal for UAV Pods , handheld laser rangefinder, and Observation systems.
Specifications
Product model
LM3000 mini
Wavelength
1535±5 nm
Eye safety
Class 1(IEC 60825-1)
Divergence
~0.6mrad
Range(Building)
10~4000m
Frequency
1~10Hz(adjustable)
Accurancy
±1m
Detection probability
≥98%
False alarm rate
≤1%
Multi-target detection
Up to 3
Interface
UART (TTL_3.3V)
Operating power
≤1.5W@10Hz
Weight
14±1g
Dimention
27×25×15.5mm(L×W×H)
Mechanical shock
1200g，1ms
Vibration
5~50~5Hz，1 octave per minute，2.5g
Operation temperature
-20 ~ +70℃
Storage temperature
-20 ~ +75℃
