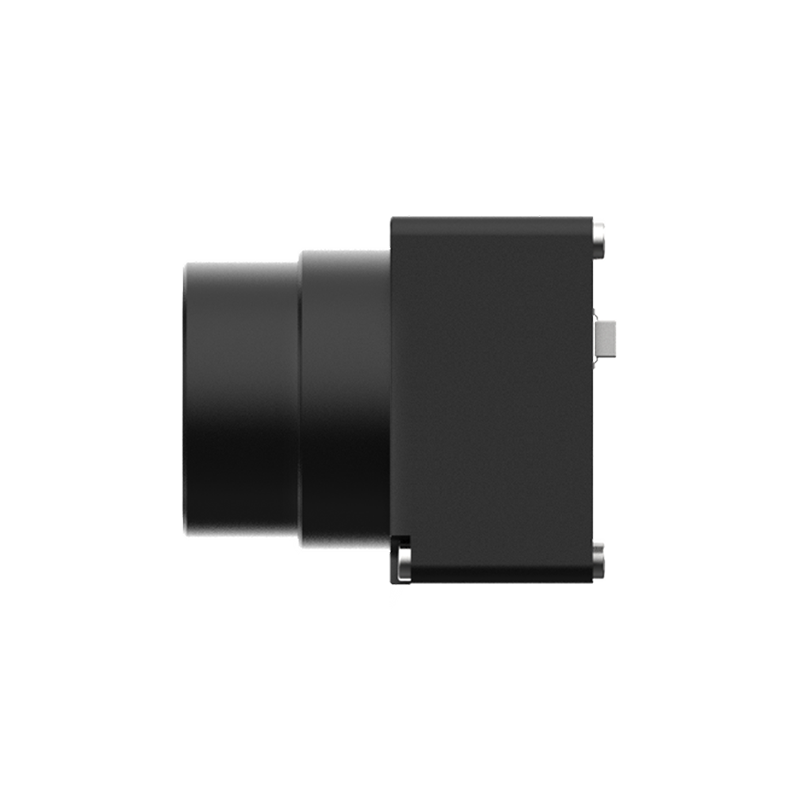

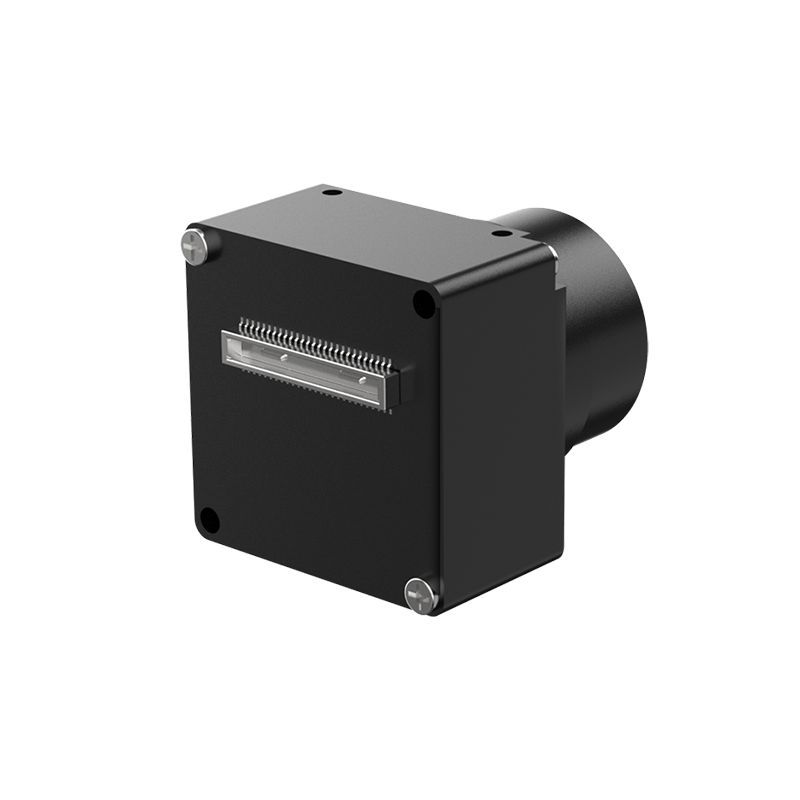

Turing L384 Uncooled Infrared Thermal Module
- Model:
- Turing L384
Features
Resolution
384×288
Pixel Pitch
12 μm
Effective Frame Rate
50 Hz (Imaging), 25 Hz (Temperature measurement)
Typical Power Consumption
≤50 mK @ 25°C (≤40 mK optional)
Package Dimension (W×L×H)
18×18mm
Description
The Turing L384 uncooled infrared thermal module represents a further technological breakthrough, redefining the industry standard for Size, Weight, and Power (SWaP³) in OEM infrared cores.
It meets the professional demands of fields such as inspection, security, search and rescue, and industrial monitoring, while also providing an excellent compact, high-resolution solution for consumer products
Specifications
Specifications
Detector Type
VOx uncooled infrared focal plane detector
Spectral Range
8 μm – 14 μm
Pixel Pitch
12 μm
Resolution
384×288
NETD
≤50 mK @ 25°C (≤40 mK optional)
Detector Frame Rate
50 Hz (Imaging), 25 Hz (Temperature measurement)
Image Adjustment
Brightness / Contrast Adjustment
Manual mode / Automatic mode
Polarity
Black hot / White hot
Pseudocolor
Supported
Crosshair
Display / Hide / Move
Image Processing
Digital filtering noise reduction / Digital detail enhancement
Nonuniformity Correction
Shutter correction / Shutterless algorithm correction
Image Mirroring
Left/Right / Up/Down / Diagonal
Focusing Method
Athermalized prime lens
Temperature Measurement
Temperature Measurement Range
-20°C to +550°C (650°C customizable)
Temperature Measurement Accuracy (Typical value)
±3°C or ±3% of reading (whichever is greater) @ ambient temperature -20°C to 60°C
Temperature Measurement Tools
Analysis tools: spot, line, area
Electrical Parameters
Power Supply Voltage (Typical)
3.8 V to 5.2 V DC / 1.8 V / 3.3 V
Typical Power Consumption @ 25°C
≤0.35W
Analog Video
PAL format
Digital Video
BT.656/BT.1120/LVCMOS/MIPI/USB2.0
Serial Communication Interface
UART/USB
Physical Characteristics (Excluding Lens and Flange)
Dimensions (W×L×H)
18×18mm
Weight
<4.8g
Optional Lenses
Lens (mm)
2.88/5.3/9.1/19
Environmental Adaptability
Operating Case Temperature
-40°C to +80°C (-20°C to 60°C Temperature measurement)
Storage Case Temperature
-45°C – +85°C
Humidity
5% to 95%, non-condensing
Vibration
6.06 g, random vibration, all axes
Shock
80 g @ 4 ms, sawtooth waveform, 3 axes / 6 directions
