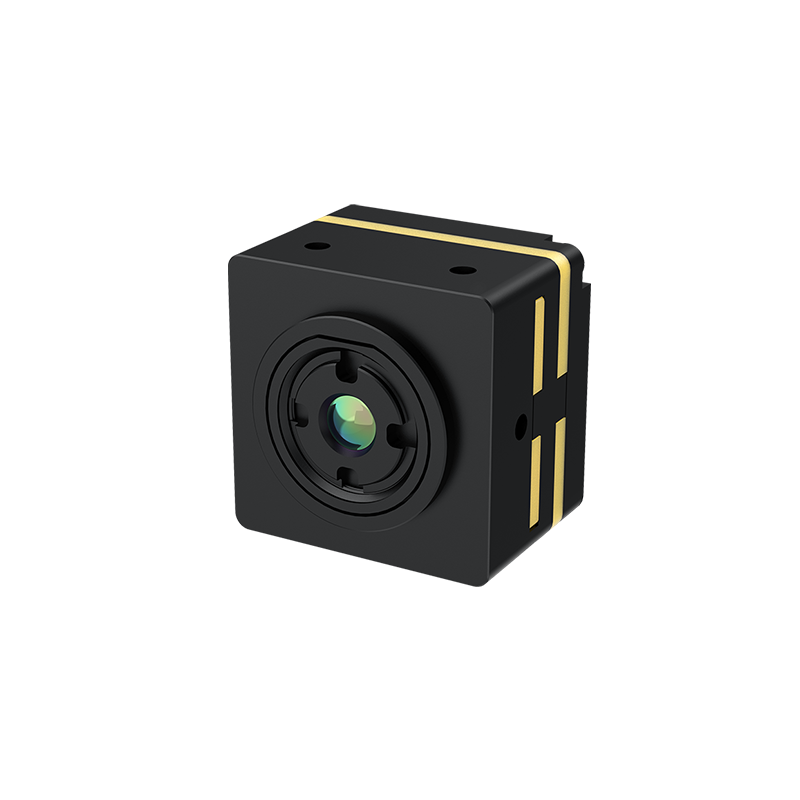

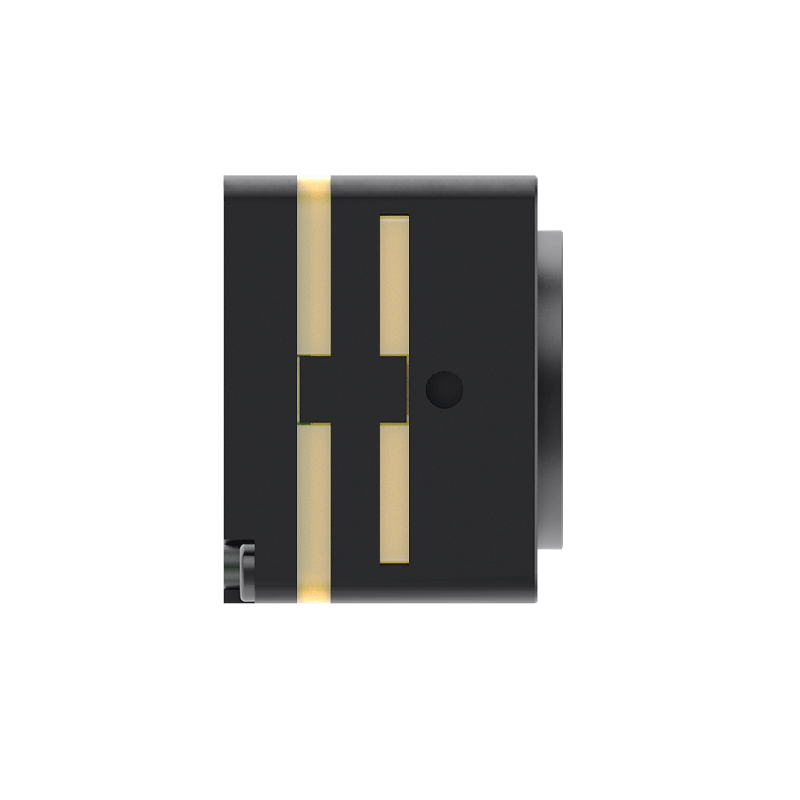

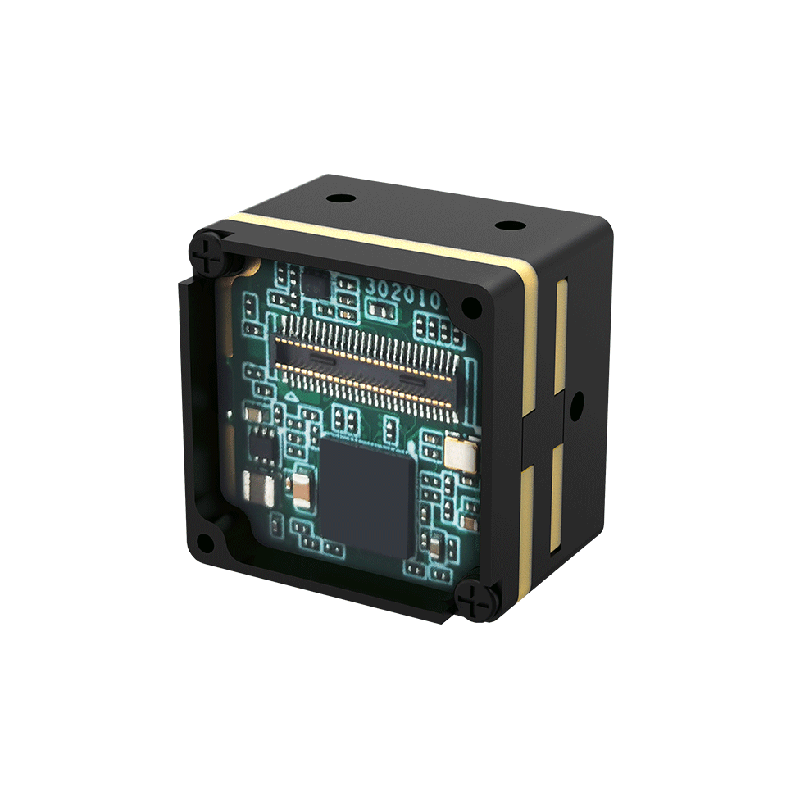

Turing L256 Uncooled Infrared Thermal Module
- Model:
- Turing L256
Features
Resolution
256×192
Pixel Pitch
12 μm
Effective Frame Rate
25 Hz (Temperature measurement), 50 Hz (Imaging)
Typical Power Consumption
≤50 mK @ 25°C
Package Dimension (W×L×H)
18×18mm
Description
The Turing L256 uncooled infrared thermal module utilizes an advanced 256×192 wafer-based detector. Its integrated 18 mm × 18 mm design sets a new standard for Size, Weight, and Power (SWaP³) in the OEM core industry and is applicable in industrial, electrical, security and machine vision fields.
It provides an excellent miniaturized solution for consumer products and is an ideal choice for low-cost applications.
Specifications
Specifications
Detector Type
VOx uncooled infrared focal plane detector
Spectral Range
8 μm – 14 μm
Pixel Pitch
12 μm
Resolution
256×192
NETD
≤50 mK @ 25°C
Detector Frame Rate
25 Hz (Temperature measurement), 50 Hz (Imaging)
Image Adjustment
Brightness / Contrast Adjustment
Manual mode / Automatic mode
Polarity
Black hot / White hot
Pseudocolor
Supported
Crosshair
Display / Hide / Move
Image Processing
Digital filtering noise reduction / Digital detail enhancement
Nonuniformity Correction
Shutter correction
Image Mirroring
Left/Right / Up/Down / Diagonal
Focusing Method
Athermalized prime lens
Temperature Measurement
Temperature Measurement Range
High image quality: -20°C to 150°C, wide range: 100°C to 550°C
Temperature Measurement Accuracy (Typical value)
±3℃ or ±3% of the reading (whichever is greater) @ ambient temperature -20°C to 60°C
Electrical Parameters
Power Supply Voltage (Typical)
3.8 V to 5.2 V DC / 1.8 V/3.3 V
Typical Power Consumption @ 25°C
≤0.35 W
Analog Video
P format
Digital Video
LVCMOS/BT.601/BT.1120 (Imaging) / USB2.0
Serial Communication Interface
UART/USB
Physical Characteristics (Excluding Lens and Flange)
Dimensions (W×L×H)
18×18mm
Weight (with 3.22mm lenses)
8.7g
Optional Lenses
Lens (mm)
2/3.2/7/10
Environmental Adaptability
Operating Case Temperature
-20°C – 60°C
Storage Case Temperature
-45°C – +85°C
Humidity
5% to 95%, non-condensing
Vibration
6.06 g, random vibration, all axes
Shock
80 g @ 4 ms, sawtooth waveform, 3 axes/ 6 directions
