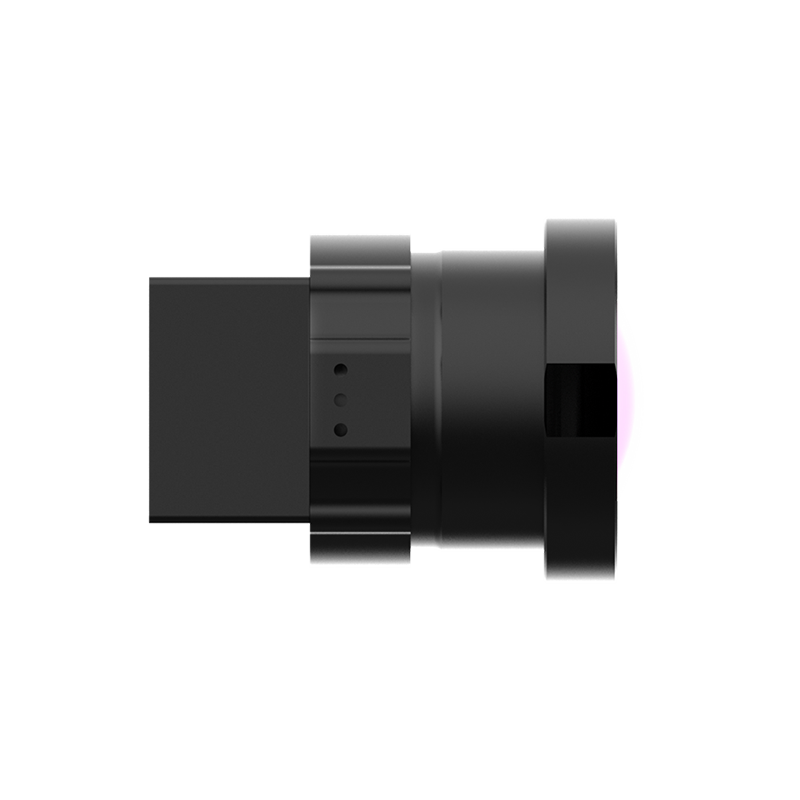

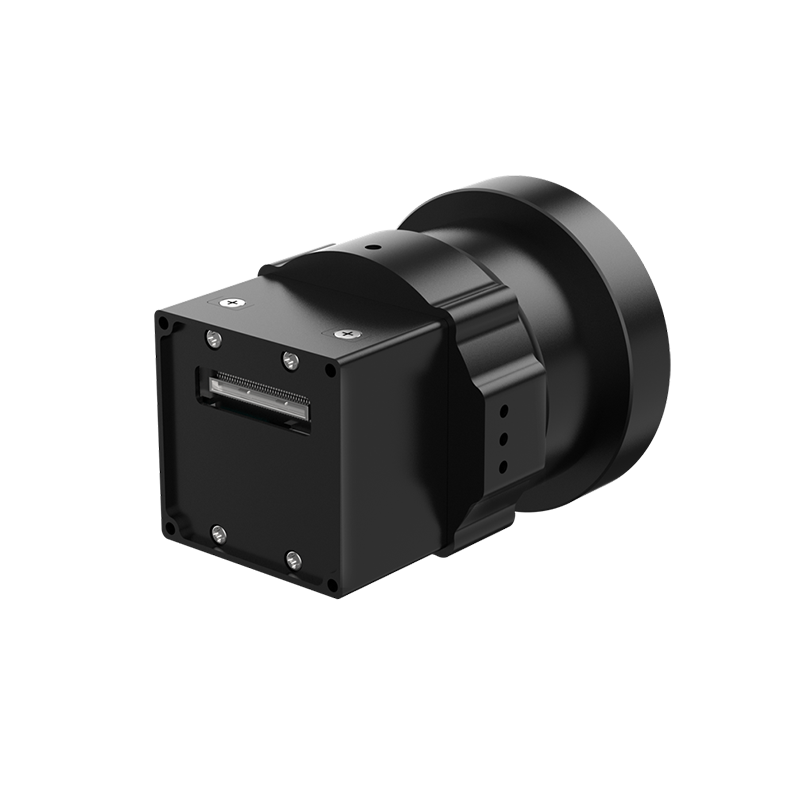

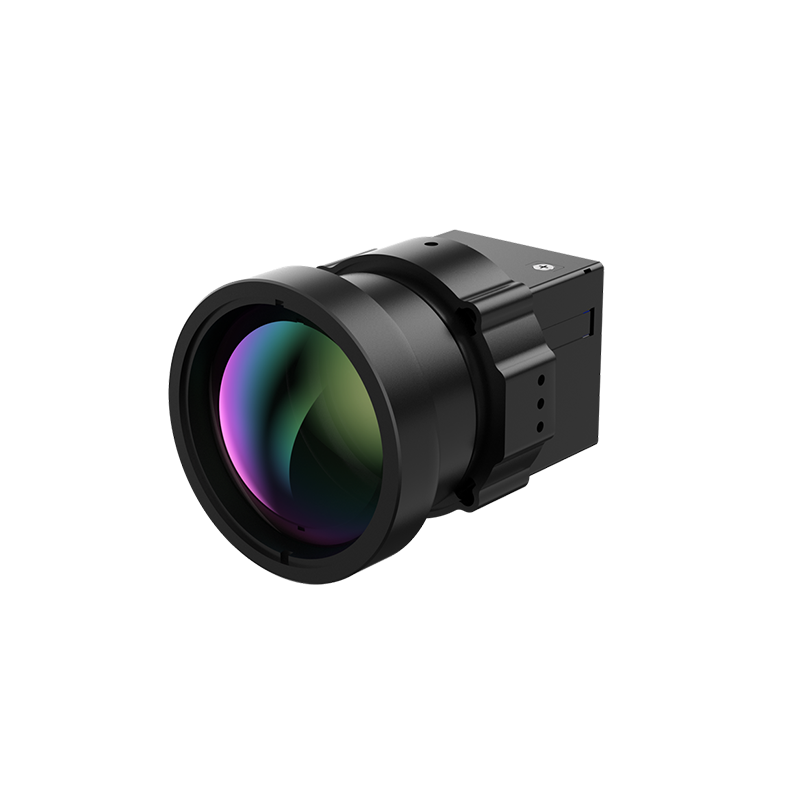

Turing L1280 Uncooled Infrared Thermal Module
- Model:
- Turing L1280
Features
Resolution
1280×1024
Pixel Pitch
12μm
Effective Frame Rate
30Hz
Typical Power Consumption
0.9W (Typical, @25°C，without extension)
Package Dimension (W×L×H)
1W (Typical, @25°C，without extension)
Description
Turing L1280 uncooled infrared thermal module is a new generation of module components designed for expert users. The use of self-developed detectors has taken an important step forward in miniaturization and lightweighting, making us take a lead.
With the advantage of large array imaging of 1280, the size is only 29mm×29mm, and the weight is only 24.5g. With a professional development team, it is the best choice for meeting the lightweight development needs.
Specifications
Model
Turing L1280 Imaging
Turing L1280 Temperature Measurement
Performance Characteristics
Detector Type
Uncooled VOx infrared detector
Resolution
1280×1024
Pixel Pitch
12μm
Frame Rate
30Hz
Spectral Band
8~14μm
NETD
≤50mK at 25℃,F#1.0
Image Adjustment
Brightness/Contrast Adjustment
Manual/Automatic
Polarity
Black-hot/White-hot
Palette
Support
Image Processing
TEC-less temperature control algorithm, digital filtering noise reduction, and digital detail enhancement
Mirror Image
Vertical/Horizontal/Diagonal
Power Supply
Power Supply Range
4.0~5.5VDC/3.3V/1.8V
4.1~5.5V DC supported by user extension components
Power Consumption
0.9W (Typical, @25°C，without extension)
1W (Typical, @25°C，without extension)
Interface
Digital Video
BT1120
CDS2
14Bit or 8Bit LVCMOS/MIPI
Control Interface
UART（3.3V）
Extension Components
USB3.0
Temperature Measurement Characteristics
Temperature Measurement Range
/
Temperature measurement series: -20°C~+150°C, 100℃~+650°
Measurement Accuracy
/
Temperature measurement series: ±2°C or ±2% of reading (The greater shall prevail) @Ambient temperature of 15°C~35°C
Measurement Tool
/
Secondary analysis of points, lines, and areas
Physical Characteristics
Dimensions (Without Lens and Extension Components)
29mm×29 mm×18.9mm
Weight (Without Lens and Extension Components)
24.5g
Lens
10mm/19mm/24mm/35mm/50mm/75mm/100mm
10mm/19mm/24mm/35mm/50mm
Environment Adaptability
Operating Temperature
-40℃~+70℃
-20°C~+60°C measurement
Storage Temperature
-45℃~+85℃
Humidity
5~95%, non-condensing
Product Certification
RoHS2.0
