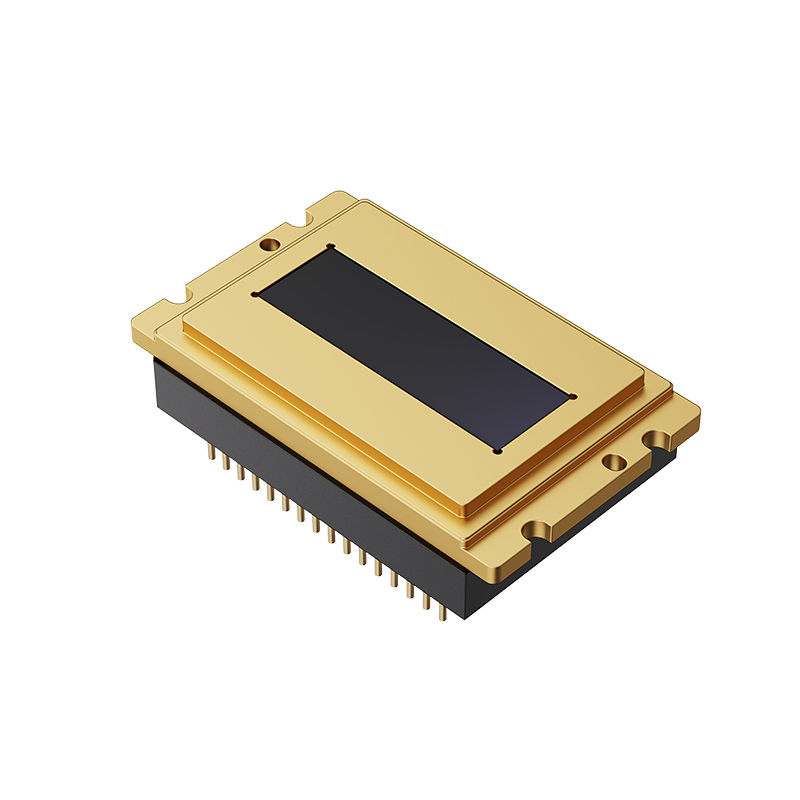

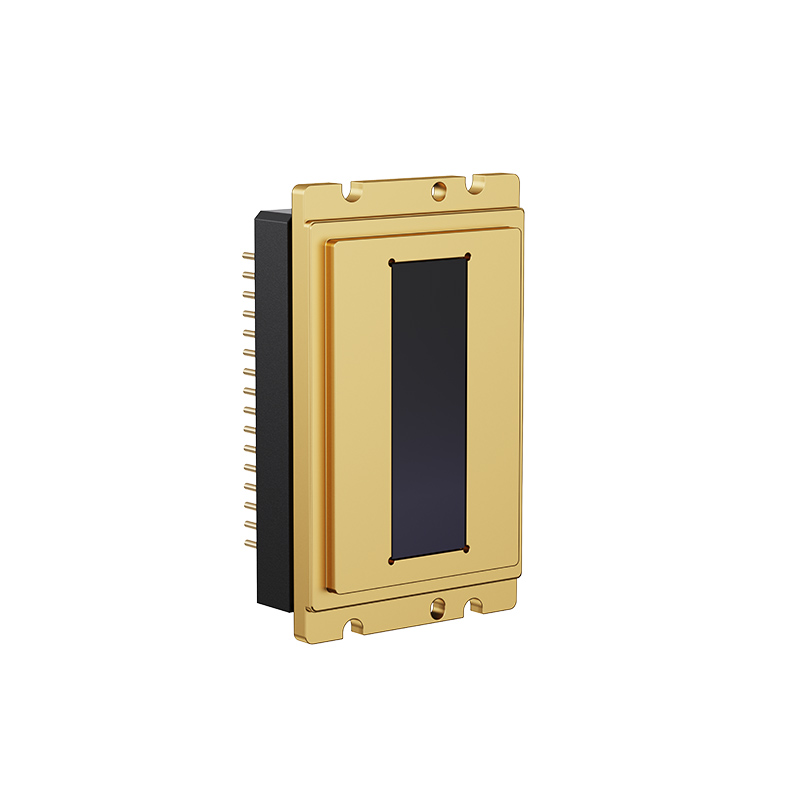

RL01K1/RL5122-H1S00 Short-Wave Infrared Linear Array Detector
- Model:
- RL01K1/RL5122-H1S00
Features
Pixel Pitch
12.5μm / 25μm
Linear Array Size
1024×1 / 512×2
Operating Power Consumption
≤200mW
Outline Dimensions
25.5×17.7×7.0mm³ (excluding pin size)
Device Weight
~8g
Description
The short-wave infrared linear array is based on advanced InGaAs sensor technology and supports two array sizes, 1024×1 and 512×2, with pixel pitches of 12.5μm and 25μm respectively.
It has a spectral response of 0.9-1.7μm. The detector is housed in a metal-ceramic integrated package with a built-in single-stage TEC. It features selectable resolution, high line rate, low noise, and a wide dynamic range, making it suitable for applications such as resource recycling, agricultural product sorting, photovoltaic inspection, and machine vision.
Specifications
Technical Specifications
RL01K1
RL5122-H1S00
Sensor
InGaAs
Spectral Response Range
0.9μm – 1.7μm
Quantum Efficiency
>70% (1.0μm – 1.6μm)
Optical Fill Factor
100%
Pixel Pitch
12.5μm
25μm
Linear Array Size
1024×1
512×2
Effective Pixel Rate
≥ 99.8%
Maximum output line frequency
36kHz
Readout Mode
ITR, IWR
Minimum Integration Time
15μs
Readout Noise (Typical)
50e@1-36kHz, 20℃
Optional Gain
≥4-level
Average Pixel Dark Current
≤100ke/s@20℃
≤300ke/s@20℃
Operating Power Consumption
≤200mW
Output Signal Swing
1.9±0.1V
Dynamic Range
≥58dB
Response Non-uniformity
≤5%, non-corrected
Packaging Type
Metal-ceramic integrated with hermetic packaging (built-in single-stage TEC)
Outline Dimensions
25.5×17.7×7.0mm³ (excluding pin size)
Device Weight
~8g
Operating Case Temperature
-40°C – +60°C
Storage Case Temperature
-45°C – +70°C
